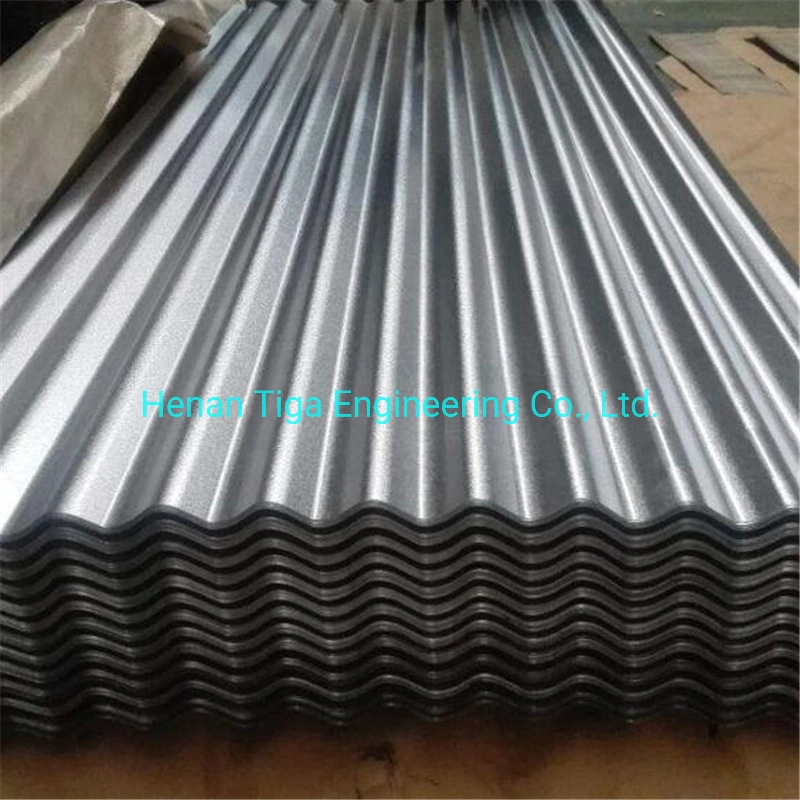

Tiga factory building material corrugated galvanized steel roof panel

1. Corrugated Roofing Steel Sheet introductionIt is a plain carbon steel sheet coated in a galvanizing process that applies abarrier of zinc to insulate it from the elements. Most of the corrugated roofing and sidingproducts seen today and for many years past are made with a galvanized finish.2.Corrugated Roofing Sheet

Featured Products

1. Corrugated Roofing Steel Sheet introduction
It is a plain carbon steel sheet coated in a galvanizing process that applies a
barrier of zinc to insulate it from the elements. Most of the corrugated roofing and siding
products seen today and for many years past are made with a galvanized finish.


2.Corrugated Roofing Sheet Common Size
1) 750/762mm to 665mm(after corrugated) and 9 waves
2) 900mm to 800mm(after corrugated) and 11 waves
3)1000mm to 900mm(after corrugated) and 12 or14 waves
Special size can be produced as customers' requirement


3.The application of Corrugated Roofing Sheet
It is widely used in light industy,electrical home appliances,motorcar and building
construction,building roofing system, steel constructions, floor decking system,etc.


4. Corrugated Roofing Sheet technical processing
Hot rolled steel coil -->Cold rolled- >hot dipped galvanized/ galvalume- > corrugated-->packing



ProductCorrugated Galvanized Roofing Steel Sheet
Base materialHot  dip galvanized steel sheet / Hot dip galvalume steel sheet
Material GradeSGCC / DX51D+Z / DX51D+Z, etc
Width600mm-1250mm or as customer's request
ApplicationBuilding roofing system, steel constructions, floor decking system
Surface TreatmentGalvanized, galvalume or color coated
Thickness0.12-0.6mm
Width before corrugation750mm,762mm,900mm,1000mm
ToleranceThickness: +/-0.02mm     Width:+/-1mm
Zinc-coating30g/m2-275g/m2
StandardAISI,ASTM,BS,DIN,JIS
Product typeCorrguated Roofing sheet
TermsRaw material 750/762mm to 665mm(after corrugated) and 9 waves
Raw material 900mm to 800mm(after corrugated) and 11 waves
Raw material 1000mm to 900mm(after corrugated) and 12 or14 waves
FeatureRoofing Steel Sheet have excellent performance of decoration,  corrosion resistance etc.
Export packageStandard Seaworthy export package
