Spanish tile roofing
Spanish ASA Synthetic Resin Tile
ASA Spanish tile roofing
Thickness:1.5mm,2.0mm,2.5mm,3.0mm
Color:blue , green , red , gray , terra cotta
Width:1050mm
Length:According to customer
Color:Red, blue, gray, white or customized color
Materials: Synthetic resin ASA + PVC light weight Spanish tile roof
Quality Warranty: 20 years for fast color and life span
Properties of light weight Spanish tile roof
1. Extraordinary thermal preservation and thermal insulation: The coefficient of heat conductivity is 0.325 w/m.k.
2. Good sound insulation: It is non-conductive and remains intact in case of accidental discharge.
3. Excellent corrosion resistance performance: The inner and surface parts of resins both havexcellent corrosion resistance performance, against the rain and snow corrosion, and can be
resistant to acid, salt, alkali and various chemical elements for a long time.
4. Good resistance to impact and low temperature: This tile doesn't crack after 1KG steel ball fallson it from 3 meters high. Moreover, the resistance to impact under minus 40 °C low temperature is also very outstanding.
5. Excellent waterproof performance: The high weathering resistance resin adopted in the roofing tile is compact and does not absorb water.
6. Strong fire resistance: The inner material PVC resin is difficult-flammable material, and
it is tested by the state authoritative department of fire prevention, its fire proofing performance is ≥ Class B1.
7. Stable volume: The expansion coefficient is 4.93×10-5 mm/mm/°C, besides it also has a two-way stretch performance on geometrical shape, which enable it to accommodate to its extension even in case of big temperature change.
8. Perfect self-cleaning performance: It is clean and looks new again after being washed by rain, no mark is left on the surface.
9. Friendly environmental protection: Without any asbestos or radioactive element, it can be
recycled and completely meets the requirement of environmental protection.
10. Fast installation: It is light and easy to be assembled and disassembled.
Applications of light weight Spanish tile roof

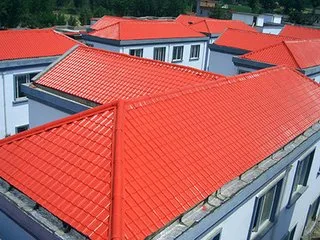

It is suitable for using in roof decoration of all kinds of industrial and civil buildings, such as the roofof flat-to-sloping projects, high-grade workshops, warehouses, gymnasiums, super markets,villas, gardens, pavilions, etc.
Technical parameters of light weight Spanish tile roof
Spanish ASA Synthetic Resin Tile
ASA Spanish tile roofing
Thickness:1.5mm,2.0mm,2.5mm,3.0mm
Color:blue , green , red , gray , terra cotta
Width:1050mm
Length:According to customer
Color:Red, blue, gray, white or customized color
Materials: Synthetic resin ASA + PVC light weight Spanish tile roof
Quality Warranty: 20 years for fast color and life span
Properties of light weight Spanish tile roof
1. Extraordinary thermal preservation and thermal insulation: The coefficient of heat conductivity is 0.325 w/m.k.
2. Good sound insulation: It is non-conductive and remains intact in case of accidental discharge.
3. Excellent corrosion resistance performance: The inner and surface parts of resins both havexcellent corrosion resistance performance, against the rain and snow corrosion, and can be
resistant to acid, salt, alkali and various chemical elements for a long time.
4. Good resistance to impact and low temperature: This tile doesn't crack after 1KG steel ball fallson it from 3 meters high. Moreover, the resistance to impact under minus 40 °C low temperature is also very outstanding.
5. Excellent waterproof performance: The high weathering resistance resin adopted in the roofing tile is compact and does not absorb water.
6. Strong fire resistance: The inner material PVC resin is difficult-flammable material, and
it is tested by the state authoritative department of fire prevention, its fire proofing performance is ≥ Class B1.
7. Stable volume: The expansion coefficient is 4.93×10-5 mm/mm/°C, besides it also has a two-way stretch performance on geometrical shape, which enable it to accommodate to its extension even in case of big temperature change.
8. Perfect self-cleaning performance: It is clean and looks new again after being washed by rain, no mark is left on the surface.
9. Friendly environmental protection: Without any asbestos or radioactive element, it can be
recycled and completely meets the requirement of environmental protection.
10. Fast installation: It is light and easy to be assembled and disassembled.
Applications of light weight Spanish tile roof
It is suitable for using in roof decoration of all kinds of industrial and civil buildings, such as the roofof flat-to-sloping projects, high-grade workshops, warehouses, gymnasiums, super markets,villas, gardens, pavilions, etc.
Technical parameters of light weight Spanish tile roof
| Tensile strength | 42.6MPa | Chemical resistance properties | Acetic aced 10% (physical volume ratio) | (23°C±2°C), 2h, no permanent abrasion or change |
| High-low temperature change | -0.11% | Ether 70% (physical volume ratio) | ||
| Vertical burning | FV-0 | Ethylene-blue 1% (weight ratio) | ||
| Oxygen index | 40% | NaOH 10% (weight ratio) | ||
| Vicat softening temperature | 76°C | Hypochlorous Natrium 15% (weight ratio) | ||
| Water absorption rate | 0.05% | Saturated NaCL | ||
| Nail force | 46N | Heat-resistance | 60°C, 6h, no deformation no viscousness | |
| Flexural load | 800N, no crack | Cold-resistance | -35°C, 6h, no crack in surface | |
| Flexural strength | 77MPa | |||
